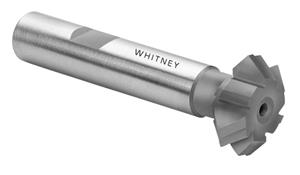

2-1/4 in. x 90 deg. Uncoated Carbide Tipped Double Angle Chamfer Milling Cutter

  • Item Code: DA225090C
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Double Angle Chamfer Milling Cutters - C2 Micrograin Carbide Tipped

Made in USA

Features Tech Specs

Features

Back To Top
    • General Purpose Carbide
    • Weldon Shank

Tech Specs

Back To Top
Shank Diameter 7/8"
UPC 648672301157
Coating None
Included Angle 90
Metric Cutting Diameter 57.15 mm
OD Tolerance 0.015"
Brand Whitney Tool
Fractional Cutting Diameter 2-1/4"
Tooth Configuration Straight
Number of Teeth 6
Shank Type Weldon
Style Double Angle
Width Tolerance 0.015"
Angle Tolerance 1/4 deg.
Cut Width 3/4"
Overall Length Fractional 4-5/32"
Shank Diameter Tolerance +0", -0.0005"
Material Carbide Tipped
