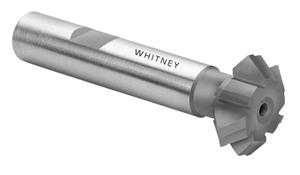

2-1/4 in. x 90 deg. TiN Coated Carbide Tipped Double Angle Chamfer Milling Cutter
- Item Code: DA225090CT
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Double Angle Chamfer Milling Cutters - C2 Micrograin Carbide Tipped
Made in USA
Features
Back To Top- General Purpose Carbide
- Weldon Shank
Tech Specs
Back To Top| UPC | 648672351152 |
|---|---|
| Angle Tolerance | 1/4 deg. |
| Cut Width | 3/4" |
| Overall Length Fractional | 4-5/32" |
| Shank Diameter | 7/8" |
| Included Angle | 90 |
| Metric Cutting Diameter | 57.15 mm |
| OD Tolerance | 0.015" |
| Brand | Whitney Tool |
| Coating | TiN |
| Fractional Cutting Diameter | 2-1/4" |
| Tooth Configuration | Straight |
| Shank Diameter Tolerance | +0", -0.0005" |
| Material | Carbide Tipped |
| Style | Double Angle |
| Width Tolerance | 0.015" |
| Number of Teeth | 6 |
| Shank Type | Weldon |
