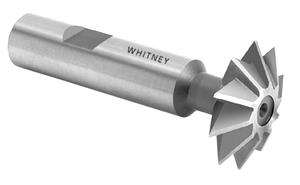

5/16 in. x 90 deg. Uncoated Solid Carbide Double Angle Chamfer Milling Cutter

  • Item Code: DA3190C
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Double Angle Chamfer Milling Cutters - C2 Micrograin Solid Carbide

Made in USA

Features Tech Specs

Features

Back To Top
    • General Purpose Carbide
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672306541
Metric Cutting Diameter 7.94 mm
Tooth Configuration Straight
Brand Whitney Tool
Fractional Cutting Diameter 5/16"
Included Angle 90
OD Tolerance 0.015"
Angle Tolerance 1/4 deg.
Coating None
Shank Type Straight
Shank Diameter 5/16"
Style Double Angle
Width Tolerance 0.015"
Number of Teeth 6
Cut Width 1/8"
Material C2 Micrograin Carbide
Shank Diameter Tolerance +0", -0.0005"
Overall Length Fractional 2-3/8"
