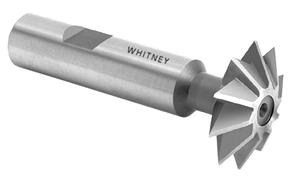

5/16 in. x 90 deg. TiN Coated HSS Double Angle Chamfer Milling Cutter

  • Item Code: DA3190T
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Double Angle Chamfer Milling Cutters - High Speed Steel

Made in USA

Features Tech Specs

Features

Back To Top
    • Right Hand Cut
    • Weldon Shank
    • 45 deg. and 60 deg. Angles Available

Tech Specs

Back To Top
UPC 648672158102
Number of Teeth 6
Shank Type Weldon
Brand Whitney Tool
OD Tolerance 0.015"
Fractional Cutting Diameter 5/16"
Included Angle 90
Overall Length Fractional 2-3/8"
Shank Diameter 3/8"
Style Double Angle
Tooth Configuration Straight
Width Tolerance 0.015"
Coating TiN
Material High Speed Steel
Metric Cutting Diameter 7.94 mm
Cut Width 1/8"
Shank Diameter Tolerance +0", -0.0005"
Angle Tolerance 1/4 deg.
