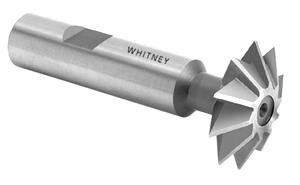

1/2 in. x 60 deg. Uncoated HSS Double Angle Chamfer Milling Cutter

  • Item Code: DA5060
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Double Angle Chamfer Milling Cutters - High Speed Steel

Made in USA

Features Tech Specs

Features

Back To Top
    • Right Hand Cut
    • Weldon Shank
    • 60 deg. and 90 deg. Angles Available

Tech Specs

Back To Top
UPC 648672108039
OD Tolerance 0.015"
Shank Diameter Tolerance +0", -0.0005"
Material High Speed Steel
Number of Teeth 6
Shank Type Weldon
Metric Cutting Diameter 12.70 mm
Overall Length Fractional 2-3/8"
Shank Diameter 3/8"
Style Double Angle
Tooth Configuration Straight
Angle Tolerance 1/4 deg.
Coating None
Brand Whitney Tool
Cut Width 5/32"
Included Angle 60
Fractional Cutting Diameter 1/2"
