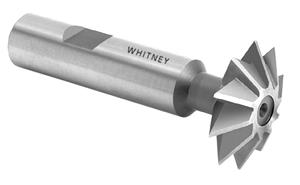

1/2 in. x 60 deg. TiN Coated Solid Carbide Double Angle Chamfer Milling Cutter
- Item Code: DA5060CT
- Brand: Whitney Tool
- Unit Size: 1
Description
Whitney Double Angle Chamfer Milling Cutters - C2 Micrograin Solid Carbide
Made in USA
Features
Back To Top- General Purpose Carbide
- Weldon Shank
Tech Specs
Back To Top| UPC | 648672356539 |
|---|---|
| Shank Diameter | 1/2" |
| Width Tolerance | 0.015" |
| Angle Tolerance | 1/4 deg. |
| Included Angle | 60 |
| Coating | TiN |
| Brand | Whitney Tool |
| Fractional Cutting Diameter | 1/2" |
| Material | C2 Micrograin Carbide |
| Overall Length Fractional | 2-3/8" |
| Number of Teeth | 6 |
| Shank Diameter Tolerance | +0", -0.0005" |
| Style | Double Angle |
| Tooth Configuration | Straight |
| Metric Cutting Diameter | 12.70 mm |
| Cut Width | 5/32" |
| OD Tolerance | 0.015" |
| Shank Type | Straight |
