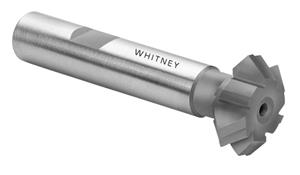

3/4 in. x 90 deg.' Uncoated Carbide Tipped Double Angle Chamfer Milling Cutter

  • Item Code: DA7590C
  • Brand: Whitney Tool
  • Unit Size: 1

Description

Whitney Double Angle Chamfer Milling Cutters - C2 Micrograin Carbide Tipped

Made in USA

Features Tech Specs

Features

Back To Top
    • General Purpose Carbide
    • Weldon Shank

Tech Specs

Back To Top
UPC 648672301102
Number of Teeth 6
Fractional Cutting Diameter 3/4"
Shank Diameter 3/8"
Tooth Configuration Straight
Cut Width 1/4"
OD Tolerance 0.015"
Shank Diameter Tolerance +0", -0.0005"
Angle Tolerance 1/4 deg.
Metric Cutting Diameter 19.05 mm
Shank Type Weldon
Style Double Angle
Coating None
Included Angle 90
Material Carbide Tipped
Width Tolerance 0.015"
Brand Whitney Tool
Overall Length Fractional 2-7/16"
