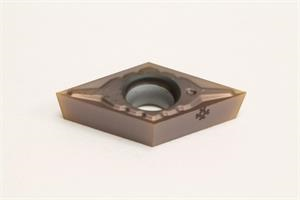

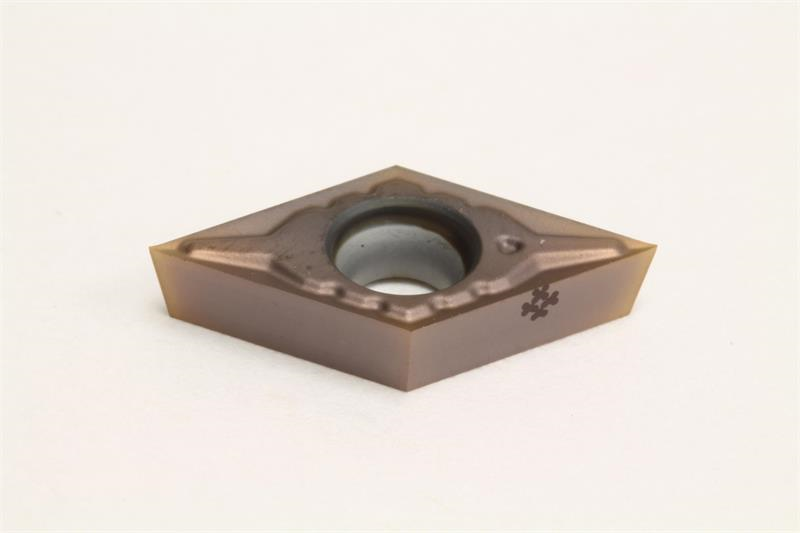

DCGT21.5.001 EFC AC530U Grade, Carbide, TiAIN/AICrN Coated, Turning Insert

  • Item Code: DCGT21.5.001EFC AC530U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 21.5.001
Material Solid Carbide
Relief Angle 7 Degree
Corner Radius 0.0012 Inch
Mounting Hole Diameter 0.1100 Inch
Number of Edges 4
Shape Diamond
Included Angle 55
Insert Type Positive
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Grade AC530U
Rake Angle 15 Degree
Inscribed Circle 0.2500 Inch
Chipbreaker Type EFC
Insert Style DCGT
Product Name Turning Insert
Brand Sumitomo
Thickness 0.0940 Inch
