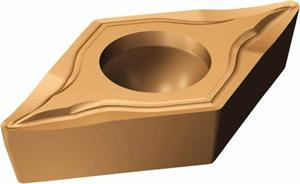

INSERT DCGT3(2.5)1 UM1125 SANDVIK
- Item Code: DCGT3(2.5)1 UM1125
- Brand: Sandvik Coromant
- Unit Size: 1
Description
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Tech Specs
Back To Top| Insert Length | 0.4420 |
|---|---|
| Length | 11.23mm |
| Overall Length | 11.63mm |
| Width | 5/32" |
| Inscribed Circle | 3/8" |
| Corner Radius | 1/64" |
| Thickness | 5/32" |
| Hole Diameter | 4.4mm |
| Material | Solid Carbide |
| Insert Size | 32.51 |
| Brand | Sandvik Coromant |
| Coating/Finish | TiAlN + AlCr2O3 |
| Insert Style | DCGT |
