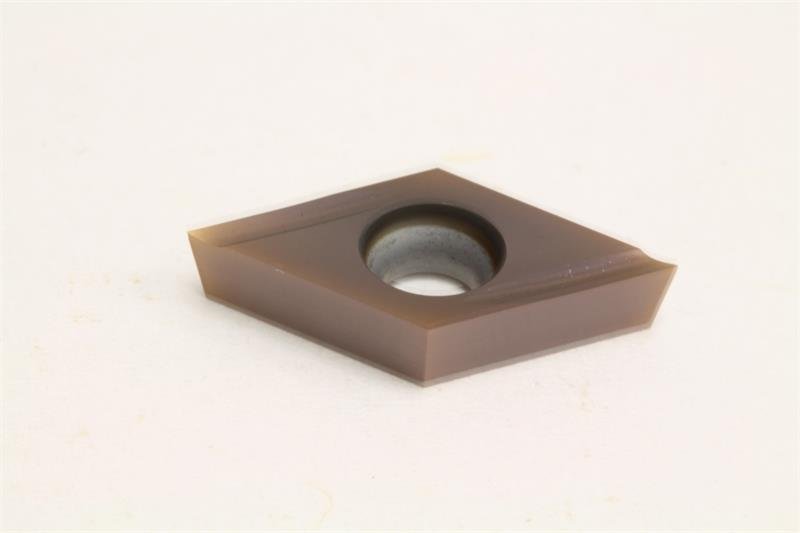

DCGT32.5.001 FX AC530U Grade, Carbide, TiAIN/AICrN Coated, Left Hand, Turning Insert

  • Item Code: DCGT32.5.001LFX-AC530U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0012 Inch
Insert Type Positive
Mounting Hole Diameter 0.1732 Inch
Chipbreaker Type FX
Insert Style DCGT
Product Name Turning Insert
Included Angle 55
Inscribed Circle 0.3750 Inch
Material Solid Carbide
Number of Edges 4
Shape Diamond
Brand Sumitomo
Insert Size 32.5.001
Relief Angle 7 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Grade AC530U
Rake Angle 15 Degree
Thickness 0.0156 Inch
