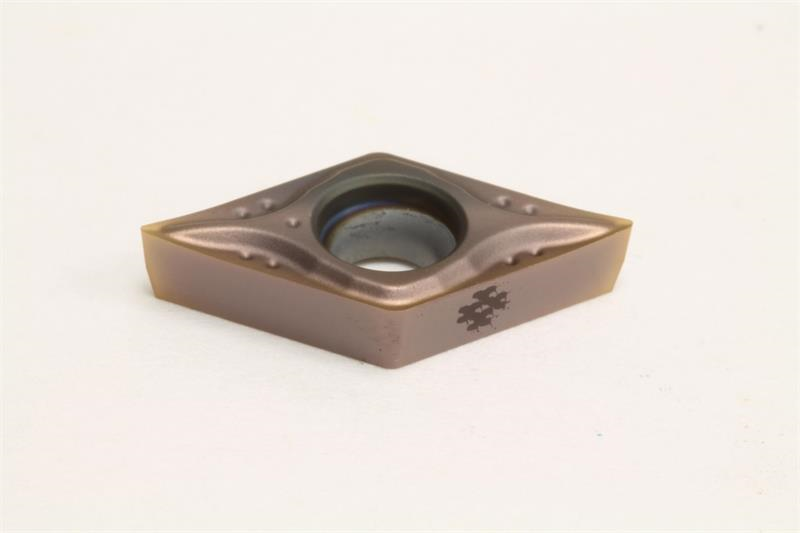

DCGT32.51 ESI AC510U Grade, Carbide, TiAIN/AICrN Coated, Turning Insert
- Item Code: DCGT32.51MESI-AC510U
- Brand: Sumitomo
- Unit Size: 1
Description
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Features
Back To Top- M = Negative nose radius tolerance (-0.0001€ to -0.0004€)
Tech Specs
Back To Top| Rake Angle | 15 Degree |
|---|---|
| Brand | Sumitomo |
| Inscribed Circle | 0.3750 Inch |
| Product Name | Turning Insert |
| Grade | AC510U |
| Included Angle | 55 |
| Material | Solid Carbide |
| Chipbreaker Type | ESI |
| Insert Type | Positive |
| Mounting Hole Diameter | 0.1732 Inch |
| Relief Angle | 7 Degree |
| Applicable Materials | Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel |
| Coating/Finish | PVD |
| Insert Size | 32.51 |
| Thickness | 0.0156 Inch |
| Corner Radius | 0.0156 Inch |
| Shape | Diamond |
| Insert Style | DCGT |
| Number of Edges | 4 |
