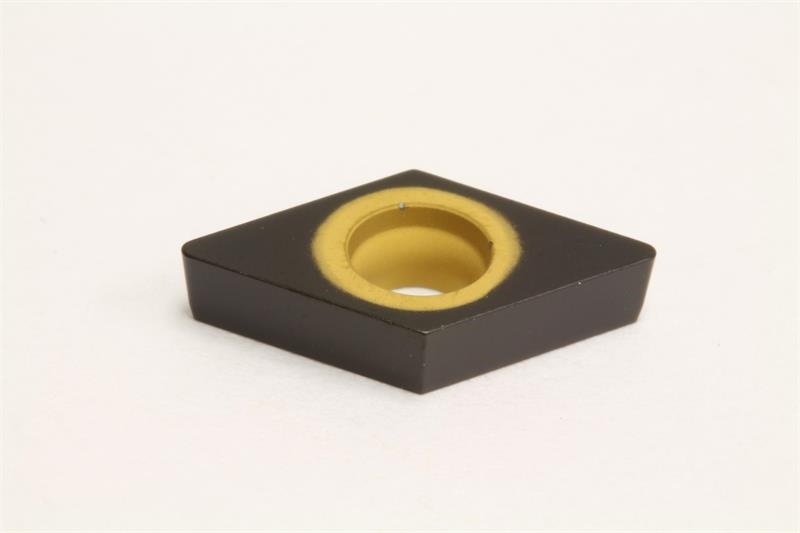

DCMA21.51 AC420K Grade, Carbide, Proprietary Coated, Turning Insert

  • Item Code: DCMA21.51 AC420K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Style DCMA
Mounting Hole Diameter 0.1100 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Thickness 0.0940 Inch
Brand Sumitomo
Chipbreaker Type No
Insert Type Positive
Corner Radius 0.0156 Inch
Inscribed Circle 0.2500 Inch
Shape Diamond
Grade AC420K
Product Name Turning Insert
Relief Angle 7 Degree
Coating/Finish CVD
Included Angle 55
Insert Size 21.51
Material Solid Carbide
Number of Edges 4
