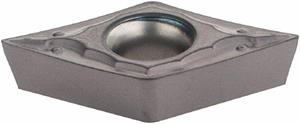

INSERT DCMT 3-0-PF-IC907 ISCAR
- Item Code: DCMT 3-0-PF-IC907
- Brand: Iscar
- Unit Size: 1
Description
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Tech Specs
Back To Top| Chipbreaker | PF |
|---|---|
| Corner Radius | 0.0080 |
| Hole Diameter | 0.1730 |
| Insert Size | 3-0 |
| Length | 0.4570 |
| Maximum Depth of Cut | 0.0980 |
| Series | Isoturn |
| Brand | Iscar |
| Thickness | 5/32" |
| Included Angle | 55 |
| Insert Style | DCMT |
| Shape | Diamond |
| Material | Solid Carbide |
| Coating Process | PVD |
| Relief Angle | 7° |
