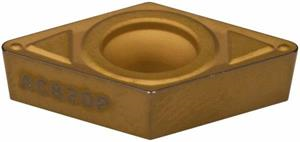

DCMT21.51 ENK AC830P Grade, Carbide, Turning Insert

  • Item Code: DCMT21.51ENK AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0156 Inch
Included Angle 55
Inscribed Circle 0.2500 Inch
Shape Diamond
Product Name Turning Insert
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Thickness 0.0940 Inch
Chipbreaker Type ENK
Mounting Hole Diameter 0.1100 Inch
Number of Edges 4
Grade AC830P
Insert Size 21.51
Insert Type Positive
Material Solid Carbide
Coating/Finish CVD
Insert Style DCMT
Rake Angle 8 Degree
Relief Angle 7 Degree
