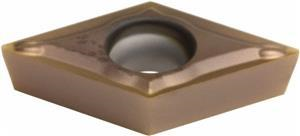

DCMT21.51 ESU AC520U Grade, Carbide, TiAIN/AICrN Coated, Turning Insert

  • Item Code: DCMT21.51ESU-AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Product Name Turning Insert
Grade AC520U
Inscribed Circle 0.2500 Inch
Chipbreaker Type ESU
Included Angle 55
Insert Style DCMT
Insert Type Positive
Mounting Hole Diameter 0.1100 Inch
Number of Edges 4
Material Solid Carbide
Thickness 0.0940 Inch
Corner Radius 0.0156 Inch
Insert Size 21.51
Shape Diamond
Brand Sumitomo
Rake Angle 8 Degree
Relief Angle 7 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
