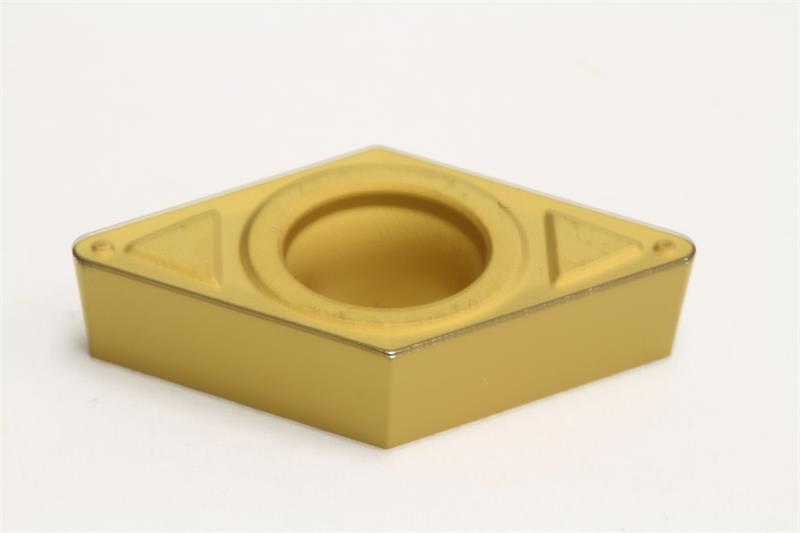

DCMT32.51 ENK AC830P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DCMT32.51ENK AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Material Solid Carbide
Grade AC830P
Insert Size 32.51
Insert Type Positive
Mounting Hole Diameter 0.1732 Inch
Included Angle 55
Shape Diamond
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Product Name Turning Insert
Chipbreaker Type ENK
Corner Radius 0.0156 Inch
Number of Edges 4
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Thickness 0.0156 Inch
Coating/Finish CVD
Insert Style DCMT
Rake Angle 8 Degree
Relief Angle 7 Degree
