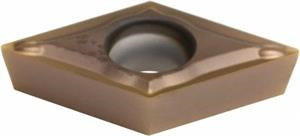

DCMT32.51 ESU AC520U Grade, Carbide, TiAIN/AICrN Coated, Turning Insert

  • Item Code: DCMT32.51ESU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type ESU
Insert Size 32.51
Insert Type Positive
Mounting Hole Diameter 0.1732 Inch
Material Solid Carbide
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Product Name Turning Insert
Corner Radius 0.0156 Inch
Number of Edges 4
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Included Angle 55
Thickness 0.0156 Inch
Grade AC520U
Shape Diamond
Insert Style DCMT
Rake Angle 8 Degree
Relief Angle 7 Degree
