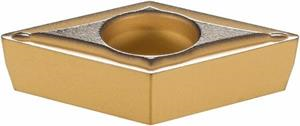

DCMT32.51 ESU AC630M Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DCMT32.51ESU AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Rake Angle 8 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Thickness 0.0156 Inch
Corner Radius 0.0156 Inch
Insert Size 32.51
Relief Angle 7 Degree
Shape Diamond
Coating/Finish CVD
Grade AC630M
Insert Style DCMT
Insert Type Positive
Material Solid Carbide
Chipbreaker Type ESU
Mounting Hole Diameter 0.1732 Inch
Number of Edges 4
Product Name Turning Insert
Included Angle 55
