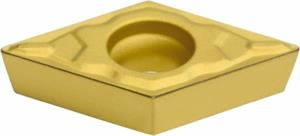

DCMT32.52 ELU AC700G Grade, Carbide, TiC Coated, Turning Insert

  • Item Code: DCMT32.52ELU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type ELU
Relief Angle 7 Degree
Coating/Finish Coated
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Grade AC700G
Material Solid Carbide
Insert Size 32.52
Insert Style DCMT
Mounting Hole Diameter 0.1732 Inch
Product Name Turning Insert
Shape Diamond
Corner Radius 0.0313 Inch
Included Angle 55
Insert Type Positive
Number of Edges 4
Rake Angle 12 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Thickness 0.0156 Inch
