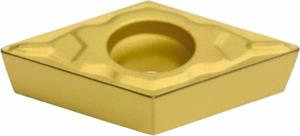

DCMT32.52 ELU AC820P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DCMT32.52ELU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 32.52
Relief Angle 7 Degree
Shape Diamond
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Thickness 0.0156 Inch
Insert Style DCMT
Number of Edges 4
Rake Angle 12 Degree
Brand Sumitomo
Grade AC820P
Mounting Hole Diameter 0.1732 Inch
Product Name Turning Insert
Corner Radius 0.0313 Inch
Coating/Finish CVD
Material Solid Carbide
Chipbreaker Type ELU
Included Angle 55
Inscribed Circle 0.3750 Inch
Insert Type Positive
