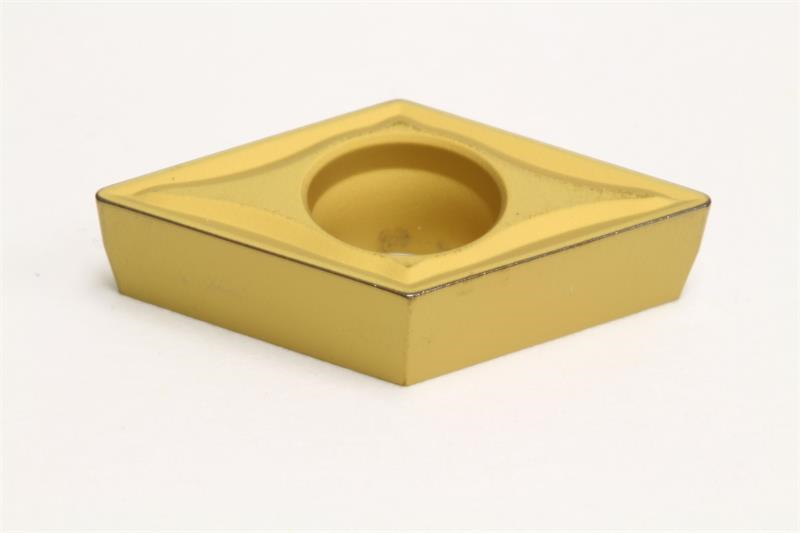

DCMT32.52 EMU AC700G Grade, Carbide, TiC Coated, Turning Insert

  • Item Code: DCMT32.52EMU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Corner Radius 0.0313 Inch
Insert Size 32.52
Included Angle 55
Material Solid Carbide
Insert Style DCMT
Number of Edges 4
Relief Angle 7 Degree
Shape Diamond
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish Coated
Grade AC700G
Thickness 0.0156 Inch
Brand Sumitomo
Mounting Hole Diameter 0.1732 Inch
Product Name Turning Insert
Rake Angle 0 Degree
Chipbreaker Type EMU
Inscribed Circle 0.3750 Inch
Insert Type Positive
