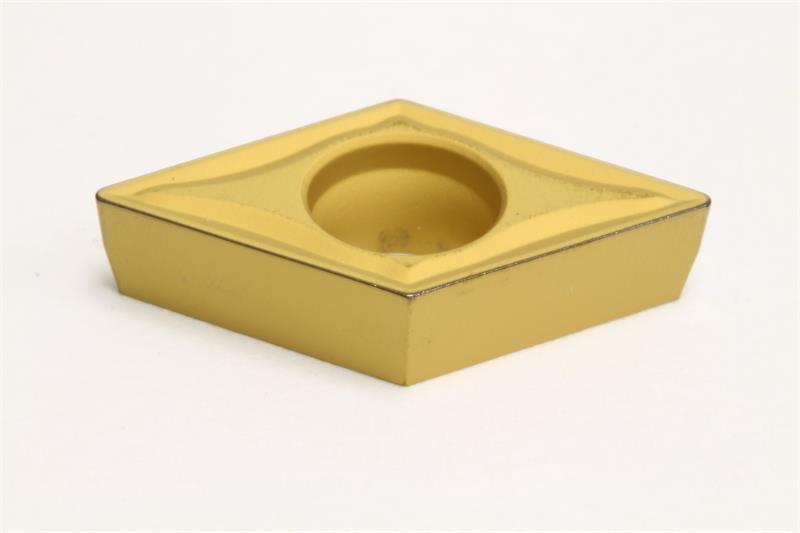

DCMT32.52 EMU AC820P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DCMT32.52EMU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Thickness 0.0156 Inch
Brand Sumitomo
Grade AC820P
Included Angle 55
Inscribed Circle 0.3750 Inch
Insert Type Positive
Mounting Hole Diameter 0.1732 Inch
Chipbreaker Type EMU
Shape Diamond
Product Name Turning Insert
Rake Angle 0 Degree
Corner Radius 0.0313 Inch
Number of Edges 4
Material Solid Carbide
Coating/Finish CVD
Insert Size 32.52
Insert Style DCMT
Relief Angle 7 Degree
