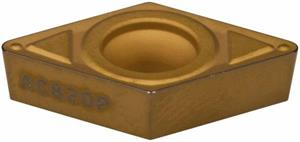

DCMT32.52 ENK AC820P Grade, Carbide, Turning Insert

  • Item Code: DCMT32.52ENK AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Insert Size 32.52
Product Name Turning Insert
Corner Radius 0.0313 Inch
Shape Diamond
Chipbreaker Type ENK
Grade AC820P
Insert Style DCMT
Insert Type Positive
Mounting Hole Diameter 0.1732 Inch
Number of Edges 4
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Included Angle 55
Thickness 0.0156 Inch
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Rake Angle 8 Degree
Relief Angle 7 Degree
Material Solid Carbide
