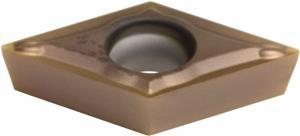

DCMT32.52 ESU AC510U Grade, Carbide, TiAIN/AICrN Coated, Turning Insert

  • Item Code: DCMT32.52ESU-AC510U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type ESU
Material Solid Carbide
Relief Angle 7 Degree
Inscribed Circle 0.3750 Inch
Rake Angle 8 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Grade AC510U
Brand Sumitomo
Insert Type Positive
Insert Size 32.52
Insert Style DCMT
Mounting Hole Diameter 0.1732 Inch
Product Name Turning Insert
Thickness 0.0156 Inch
Corner Radius 0.0313 Inch
Included Angle 55
Number of Edges 4
Shape Diamond
