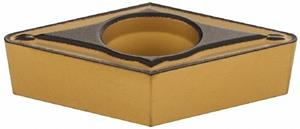

DCMT32.52 ESU AC700G Grade, Carbide, TiC Coated, Turning Insert

  • Item Code: DCMT32.52ESU AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Shape Diamond
Grade AC700G
Relief Angle 7 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Mounting Hole Diameter 0.1732 Inch
Thickness 0.0156 Inch
Insert Style DCMT
Rake Angle 8 Degree
Chipbreaker Type ESU
Corner Radius 0.0313 Inch
Number of Edges 4
Product Name Turning Insert
Included Angle 55
Insert Size 32.52
Insert Type Positive
Coating/Finish Coated
Material Solid Carbide
