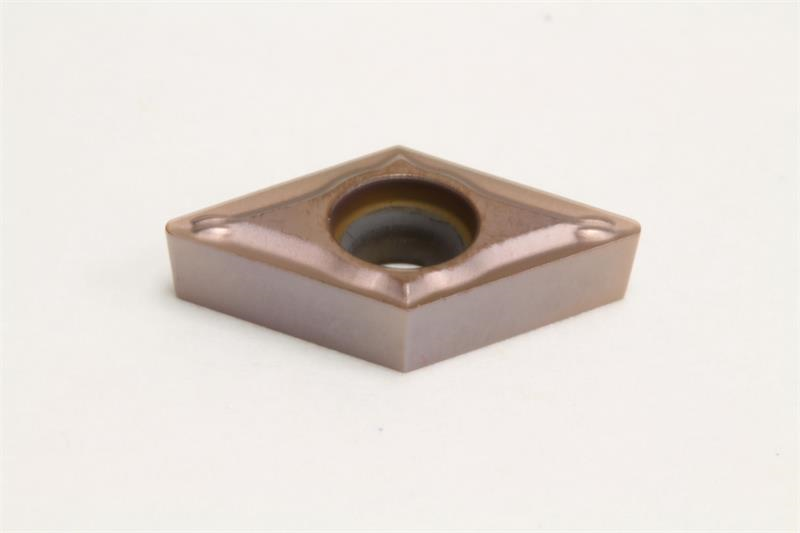

DCMT32.52 ESU T3000Z Grade, Cermet, TiN/AIN Coated, Turning Insert

  • Item Code: DCMT32.52ESU T3000Z
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.

Tech Specs

Back To Top
Corner Radius 0.0313 Inch
Insert Size 32.52
Product Name Turning Insert
Rake Angle 8 Degree
Chipbreaker Type ESU
Grade T3000Z
Insert Style DCMT
Insert Type Positive
Mounting Hole Diameter 0.1732 Inch
Number of Edges 4
Inscribed Circle 0.3750 Inch
Included Angle 55
Shape Diamond
Brand Sumitomo
Relief Angle 7 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Thickness 0.0156 Inch
