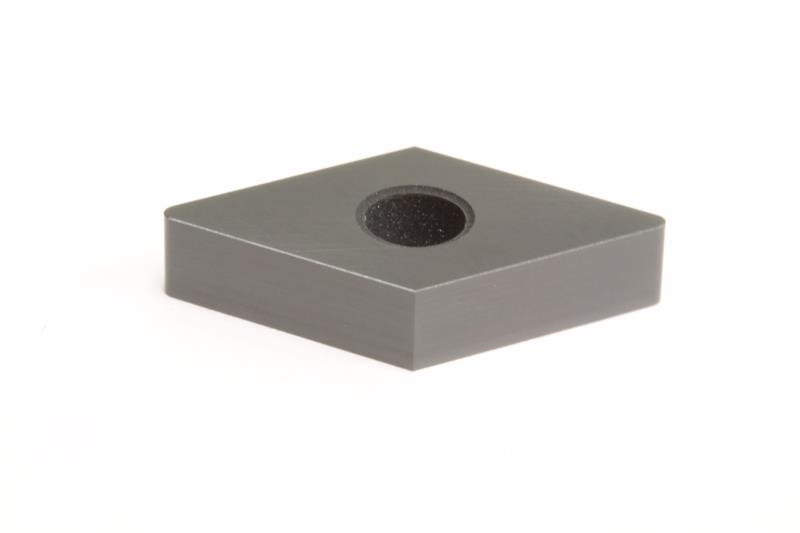

DNGA432 NB90S Grade, Ceramic Turning Insert

  • Item Code: DNGA432-NB90S
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.

Tech Specs

Back To Top
Grade NB90S
Corner Radius 0.0313 Inch
Insert Series GND
Insert Size 432
Insert Style DNGA
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Number of Edges 4
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel
Included Angle 55
Inscribed Circle 0.5000 Inch
Insert Type Negative
Material Ceramic
Shape Diamond
Thickness 0.1875 Inch
Brand Sumitomo
Coating/Finish Ceramic
Product Name Turning Insert
