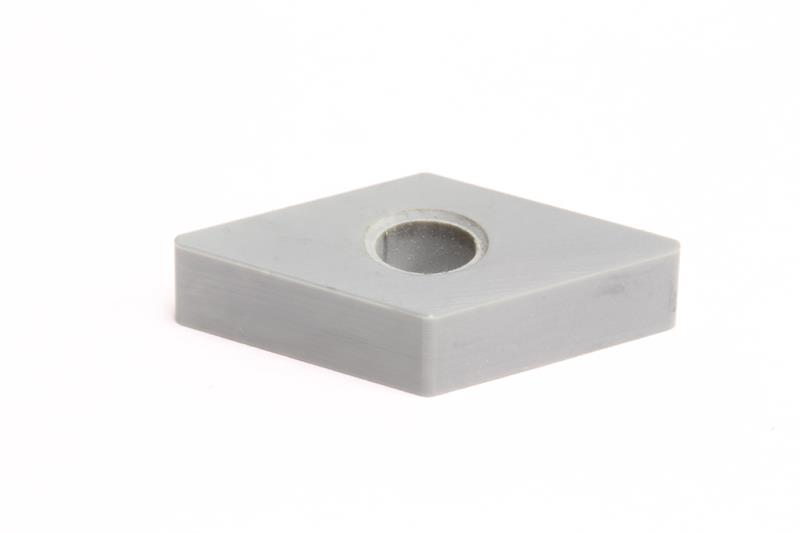

DNGA432 SN2000K Grade, Ceramic Turning Insert

  • Item Code: DNGA432 SN2000K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.

Tech Specs

Back To Top
Inscribed Circle 0.5000 Inch
Insert Type Negative
Number of Edges 4
Grade SN2000K
Material Ceramic
Shape Diamond
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel
Brand Sumitomo
Coating/Finish Ceramic
Product Name Turning Insert
Insert Series GND
Corner Radius 0.0313 Inch
Insert Size 432
Insert Style DNGA
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Included Angle 55
Thickness 0.1875 Inch
