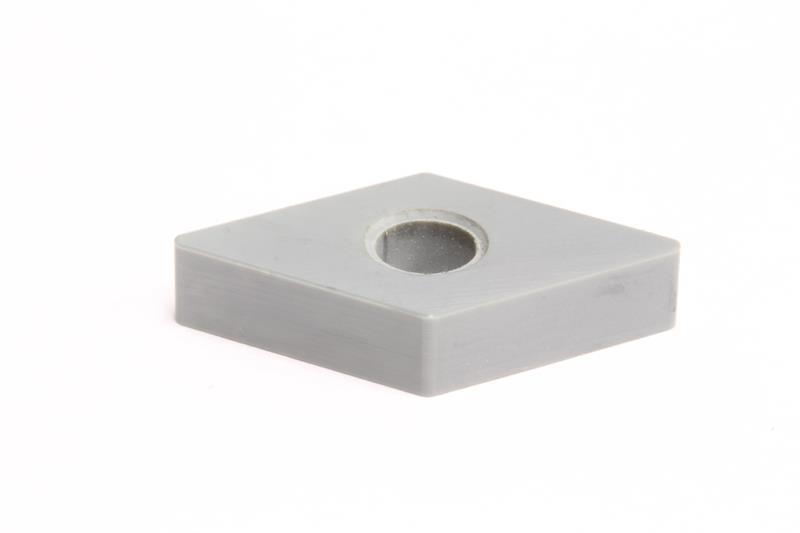

DNGA433 SN2000K Grade, Ceramic Turning Insert

  • Item Code: DNGA433 SN2000K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.

Tech Specs

Back To Top
Coating/Finish Ceramic
Grade SN2000K
Insert Series GND
Insert Style DNGA
Brand Sumitomo
Corner Radius 0.0469 Inch
Inscribed Circle 0.5000 Inch
Material Ceramic
Shape Diamond
Thickness 0.1875 Inch
Insert Size 433
Number of Edges 4
Product Name Turning Insert
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel
Included Angle 55
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
