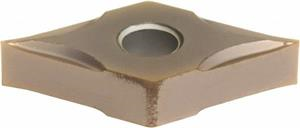

DNGG430 ESU AC520U Grade, Carbide, TiAIN/AICrN Coated Turning Insert

  • Item Code: DNGG430ESU-AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Grade AC520U
Included Angle 55
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Chipbreaker Type ESU
Number of Edges 4
Insert Size 430
Insert Type Negative
Material Solid Carbide
Corner Radius 0.0039 Inch
Inscribed Circle 0.5000 Inch
Thickness 0.1875 Inch
Rake Angle 13 Degree
Shape Diamond
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Coating/Finish PVD
Insert Style DNGG
Product Name Turning Insert
