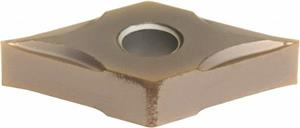

DNGG431 ESU AC520U Grade, Carbide, TiAIN/AICrN Coated Turning Insert

  • Item Code: DNGG431ESU AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Brand Sumitomo
Rake Angle 13 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
Inscribed Circle 0.5000 Inch
Insert Type Negative
Grade AC520U
Shape Diamond
Insert Style DNGG
Product Name Turning Insert
Thickness 0.1875 Inch
Chipbreaker Type ESU
Material Solid Carbide
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Corner Radius 0.0156 Inch
Included Angle 55
Insert Size 431
Number of Edges 4
