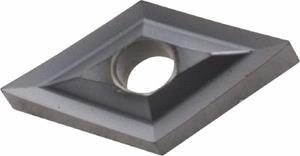

INSERT DNGP4305 KC5010 .008R KENNAMETAL
- Item Code: DNGP4305-KC5010
- Brand: Kennametal
- Unit Size: 1
Description
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Tech Specs
Back To Top| Corner Radius | 0.0079 |
|---|---|
| Hole Diameter | 5.16mm |
| Insert Size | 430.5 |
| Insert Style | DNGP |
| Length | 15.5mm |
| Manufacturer's Grade | KC5010 |
| Primary Workpiece Material | M |
| Inscribed Circle | 1/2" |
| Series | KENLOC |
| Shape | Diamond |
| Coating Process | PVD |
| Coating/Finish | TiAlN |
| Thickness | 3/16" |
| Included Angle | 55 |
| Material | Solid Carbide |
| Material Grade | C3/C4 |
| Maximum Depth of Cut | 1.25mm |
| Brand | Kennametal |
| Insert Holding Method | Screw or Clamp |
| Type | Insert |
