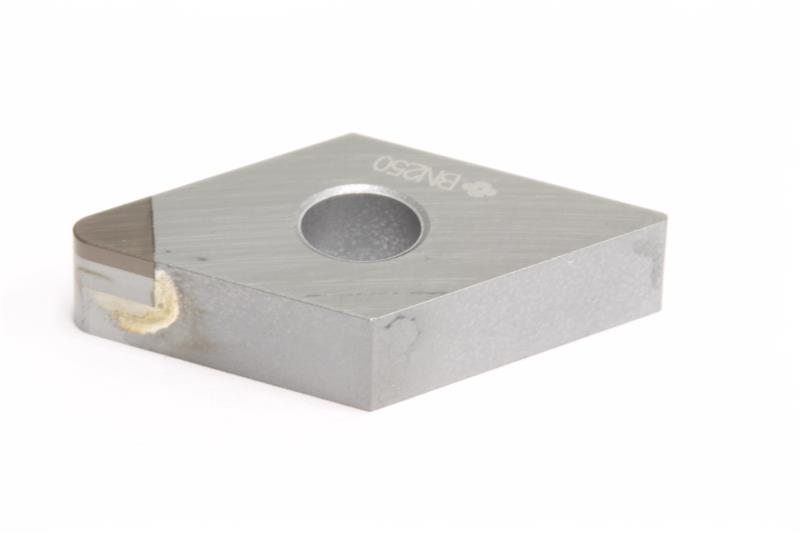

DNMA432 BN250 Grade, PCBN Style, Turning Insert

  • Item Code: DNMA432 BN250
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.

Tech Specs

Back To Top
Brand Sumitomo
Chipbreaker Type Full Tip
Corner Radius 0.0313 Inch
Shape Diamond
Grade BN250
Included Angle 55
Material PCBN
Product Name Turning Insert
Thickness 0.1875 Inch
Coating/Finish None
Inscribed Circle 0.5000 Inch
Insert Style DNMA
Max Depth of Cut 0.0200 Inch
Applicable Materials Cast Iron, Exotic Materials, Hardened Steel, Sintered Materials
Number of Edges 4
Insert Size 432
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
