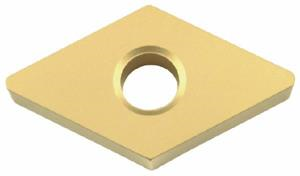

DNMA432 DA2200 Grade, Polycrystalline Diamond (PCD), Turning Insert

  • Item Code: DNMA432 DA2200
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Polycrystalline Diamond (PCD) is a synthetic diamond.

Tech Specs

Back To Top
Insert Style DNMA
Corner Radius 0.0313 Inch
Grade DA2200
Material PCD
Product Name Turning Insert
Rake Angle 0 Degree
Chipbreaker Type Standard Tip
Thickness 0.1875 Inch
Number of Edges 4
Coating/Finish Compound
Inscribed Circle 0.5000 Inch
Brand Sumitomo
Included Angle 55
Shape Diamond
Insert Size 432
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
