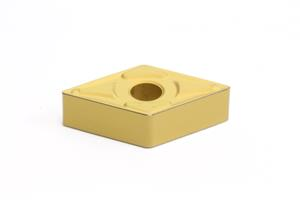

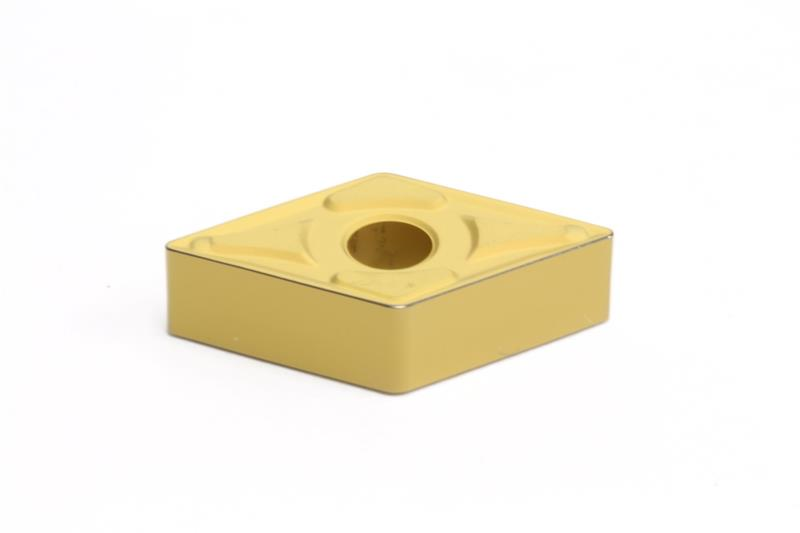

DNMG332 EGU AC830P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG332EGU-AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Chipbreaker Type EGU
Material Solid Carbide
Included Angle 55
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Brand Sumitomo
Inscribed Circle 0.3750 Inch
Insert Style DNMG
Product Name Turning Insert
Rake Angle 7 Degree
Grade AC830P
Thickness 0.1875 Inch
Insert Type Negative
Mounting Hole Diameter 0.1500 Inch
Corner Radius 0.0313 Inch
Insert Size 332
Number of Edges 4
Shape Diamond
