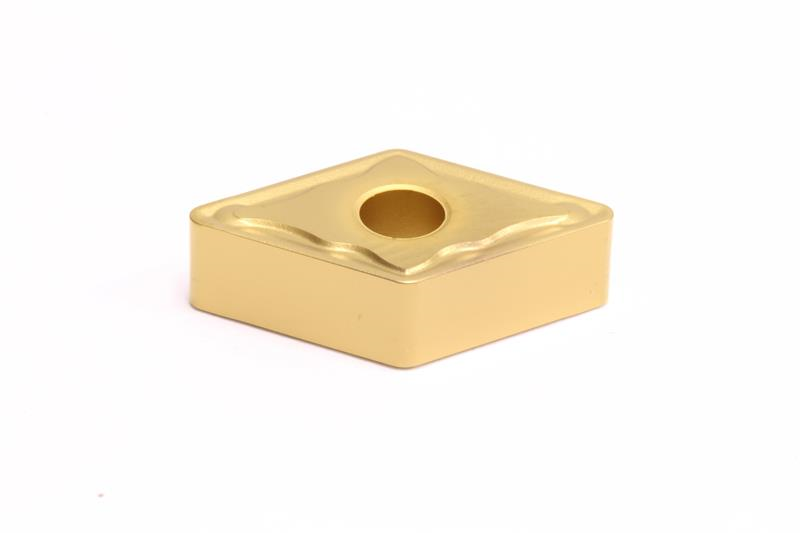

DNMG332 EUX AC830P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG332EUX AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Shape Diamond
Product Name Turning Insert
Rake Angle 0 Degree
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Insert Type Negative
Included Angle 55
Relief Angle 0 Degree
Brand Sumitomo
Grade AC830P
Inscribed Circle 0.3750 Inch
Insert Style DNMG
Mounting Hole Diameter 0.1500 Inch
Chipbreaker Type EUX
Coating/Finish CVD
Insert Size 332
Material Solid Carbide
Corner Radius 0.0313 Inch
Number of Edges 4
