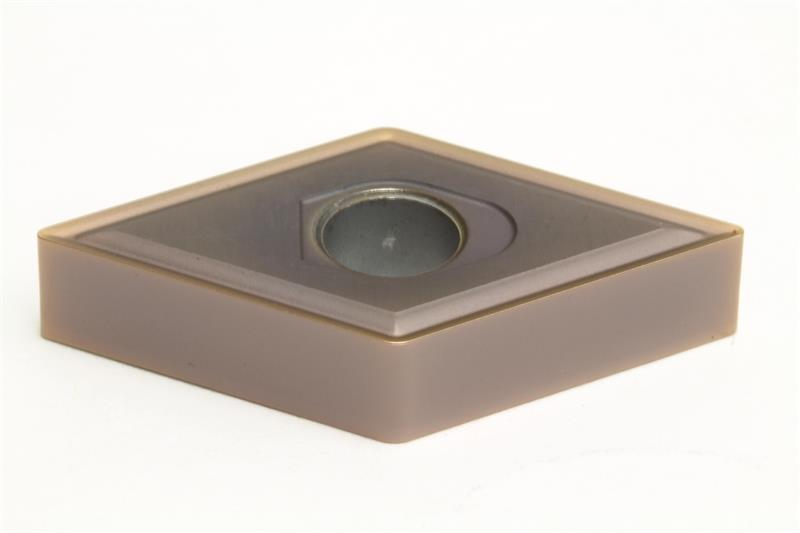

DNMG431 EEX AC520U Grade, Carbide, TiAIN/AICrN Coated, Turning Insert

  • Item Code: DNMG431EEX-AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Insert Style DNMG
Coating/Finish PVD
Inscribed Circle 0.5000 Inch
Insert Type Negative
Rake Angle 16 Degree
Grade AC520U
Shape Diamond
Product Name Turning Insert
Thickness 0.1875 Inch
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Chipbreaker Type EEX
Corner Radius 0.0156 Inch
Insert Size 431
Number of Edges 4
Included Angle 55
Material Solid Carbide
