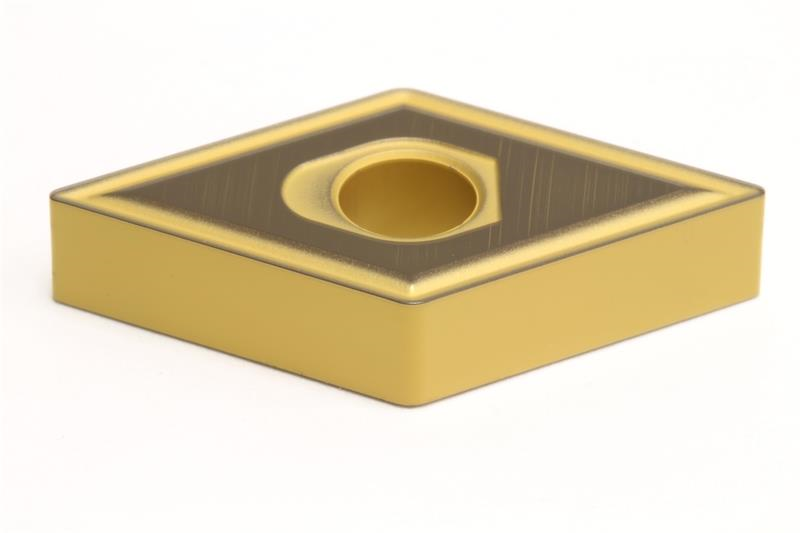

DNMG431 EEX AC610M Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG431EEX-AC610M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Brand Sumitomo
Insert Style DNMG
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Chipbreaker Type EEX
Corner Radius 0.0156 Inch
Included Angle 55
Insert Size 431
Material Solid Carbide
Product Name Turning Insert
Grade AC610M
Number of Edges 4
Thickness 0.1875 Inch
Inscribed Circle 0.5000 Inch
Shape Diamond
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Rake Angle 16 Degree
