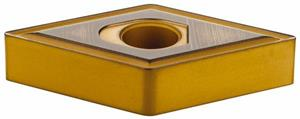

DNMG431 EEX AC630M Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG431EEX AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Inscribed Circle 0.5000 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Number of Edges 4
Rake Angle 16 Degree
Product Name Turning Insert
Thickness 0.1875 Inch
Corner Radius 0.0156 Inch
Grade AC630M
Insert Size 431
Shape Diamond
Brand Sumitomo
Chipbreaker Type EEX
Material Solid Carbide
Included Angle 55
Insert Style DNMG
Insert Type Negative
Relief Angle 0 Degree
Mounting Hole Diameter 0.2031 Inch
