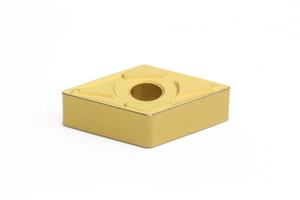

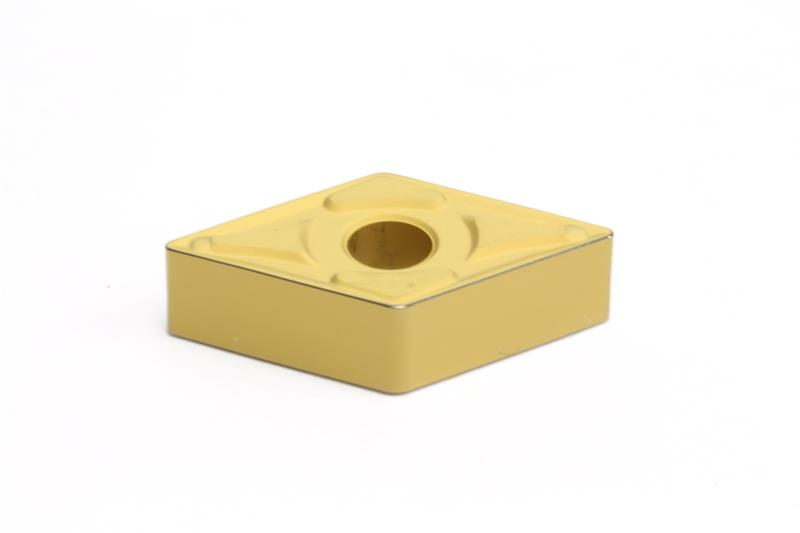

DNMG431 EGU AC820P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG431EGU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Included Angle 55
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Product Name Turning Insert
Rake Angle 7 Degree
Coating/Finish CVD
Number of Edges 4
Grade AC820P
Chipbreaker Type EGU
Insert Type Negative
Material Solid Carbide
Corner Radius 0.0156 Inch
Insert Size 431
Insert Style DNMG
Shape Diamond
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
Inscribed Circle 0.5000 Inch
Thickness 0.1875 Inch
