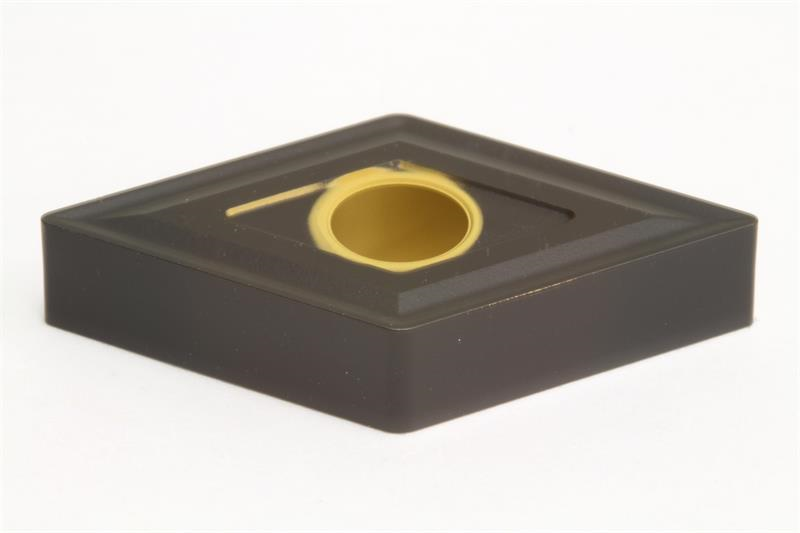

DNMG431 EGZ AC415K Grade, Carbide, Proprietary Coated, Turning Insert

  • Item Code: DNMG431EGZ AC415K
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Product Name Turning Insert
Rake Angle 0 Degree
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Coating/Finish CVD
Grade AC415K
Number of Edges 4
Chipbreaker Type EGZ
Insert Type Negative
Material Solid Carbide
Corner Radius 0.0156 Inch
Included Angle 55
Insert Size 431
Insert Style DNMG
Inscribed Circle 0.5000 Inch
Shape Diamond
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Brand Sumitomo
