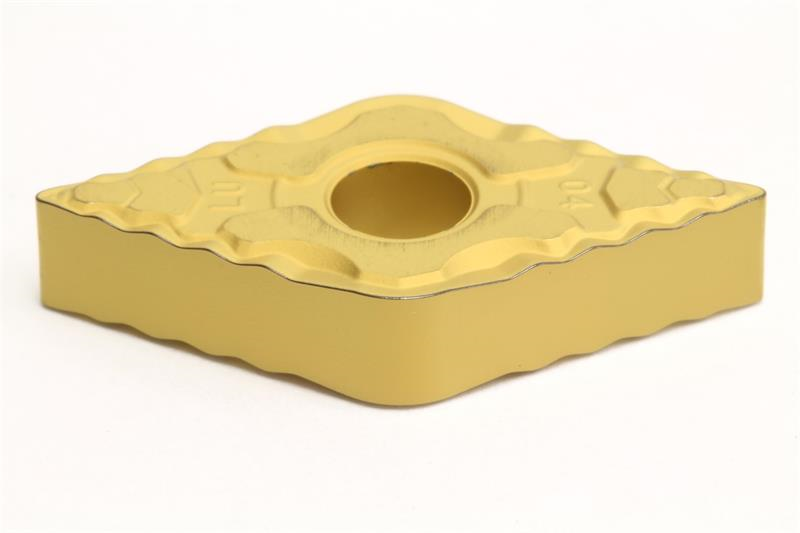

DNMG431 ELU AC700G Grade, Carbide, TiC Coated, Turning Insert

  • Item Code: DNMG431ELU-AC700G
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Coating/Finish Coated
Inscribed Circle 0.5000 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Number of Edges 4
Included Angle 55
Product Name Turning Insert
Thickness 0.1875 Inch
Chipbreaker Type ELU
Mounting Hole Diameter 0.2031 Inch
Corner Radius 0.0156 Inch
Insert Size 431
Shape Diamond
Insert Style DNMG
Insert Type Negative
Relief Angle 0 Degree
Brand Sumitomo
Material Solid Carbide
Rake Angle 10 Degree
Grade AC700G
