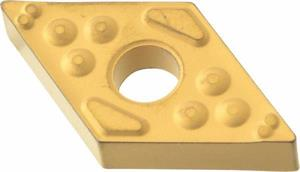

DNMG431 ENG AC820P Grade, Carbide, Turning Insert

  • Item Code: DNMG431ENG-AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Included Angle 55
Shape Diamond
Corner Radius 0.0156 Inch
Insert Size 431
Brand Sumitomo
Insert Style DNMG
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Chipbreaker Type ENG
Material Solid Carbide
Grade AC820P
Inscribed Circle 0.5000 Inch
Coating/Finish CVD
Rake Angle 4 Degree
Thickness 0.1875 Inch
Number of Edges 4
Product Name Turning Insert
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
