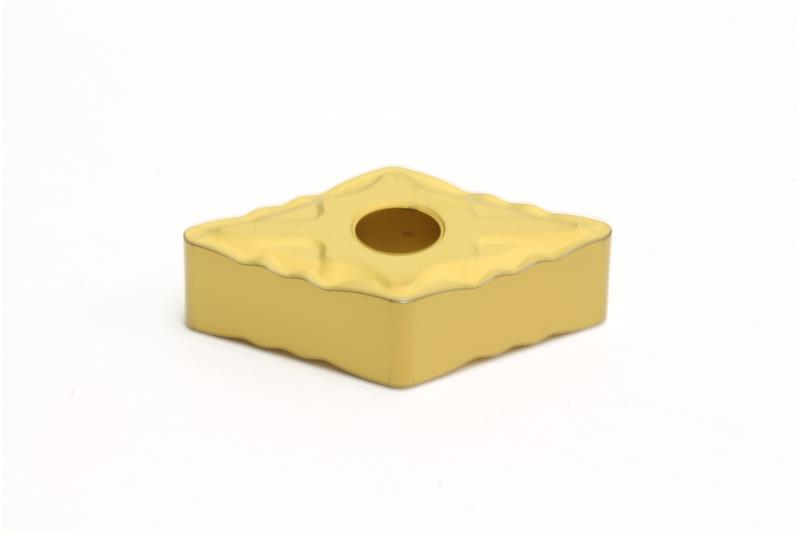

DNMG431 ESE AC810P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG431ESE AC810P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Thickness 0.1825 Inch
Material Solid Carbide
Brand Sumitomo
Mounting Hole Diameter 0.2031 Inch
Rake Angle 13 Degree
Included Angle 55
Insert Style DNMG
Relief Angle 0 Degree
Inscribed Circle 0.5000 Inch
Chipbreaker Type ESE
Corner Radius 0.0156 Inch
Insert Size 431
Number of Edges 4
Shape Diamond
Grade AC810P
Insert Type Negative
Product Name Turning Insert
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
