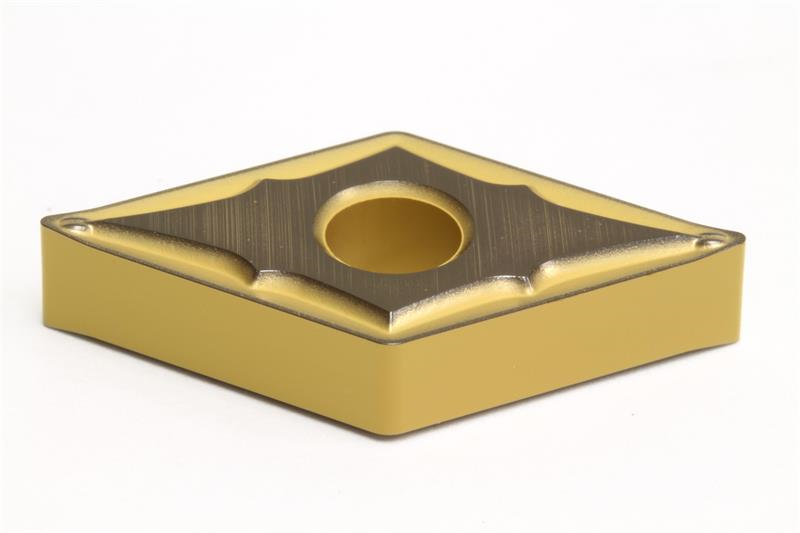

DNMG431 ESU AC630M Grade, Carbide, Turning Insert

  • Item Code: DNMG431ESU AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Inscribed Circle 0.5000 Inch
Insert Type Negative
Brand Sumitomo
Chipbreaker Type ESU
Insert Style DNMG
Rake Angle 13 Degree
Thickness 0.1875 Inch
Product Name Turning Insert
Included Angle 55
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Corner Radius 0.0156 Inch
Insert Size 431
Number of Edges 4
Shape Diamond
Material Solid Carbide
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Grade AC630M
