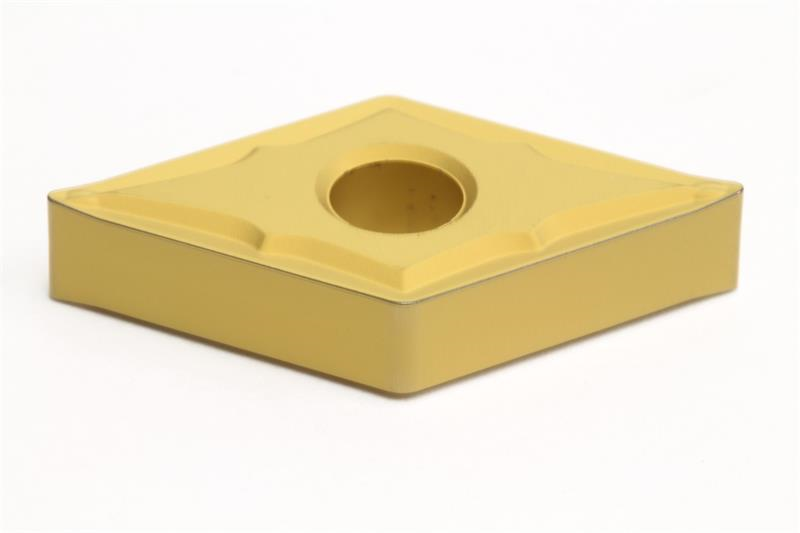

DNMG431 ESU AC810P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG431ESU AC810P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Product Name Turning Insert
Thickness 0.1875 Inch
Corner Radius 0.0156 Inch
Insert Size 431
Shape Diamond
Grade AC810P
Inscribed Circle 0.5000 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Number of Edges 4
Rake Angle 13 Degree
Included Angle 55
Insert Style DNMG
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Brand Sumitomo
Material Solid Carbide
Chipbreaker Type ESU
