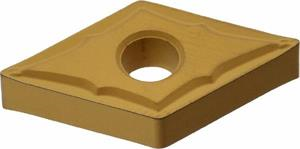

INSERT COATED CARBIDE SUMITOMO 19RJAPK

  • Item Code: DNMG431ESU AC820P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Brand Sumitomo
Chipbreaker Type ESU
Insert Style DNMG
Rake Angle 13 Degree
Grade AC820P
Inscribed Circle 0.5000 Inch
Insert Type Negative
Thickness 0.1875 Inch
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Product Name Turning Insert
Included Angle 55
Material Solid Carbide
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Corner Radius 0.0156 Inch
Insert Size 431
Number of Edges 4
Shape Diamond
