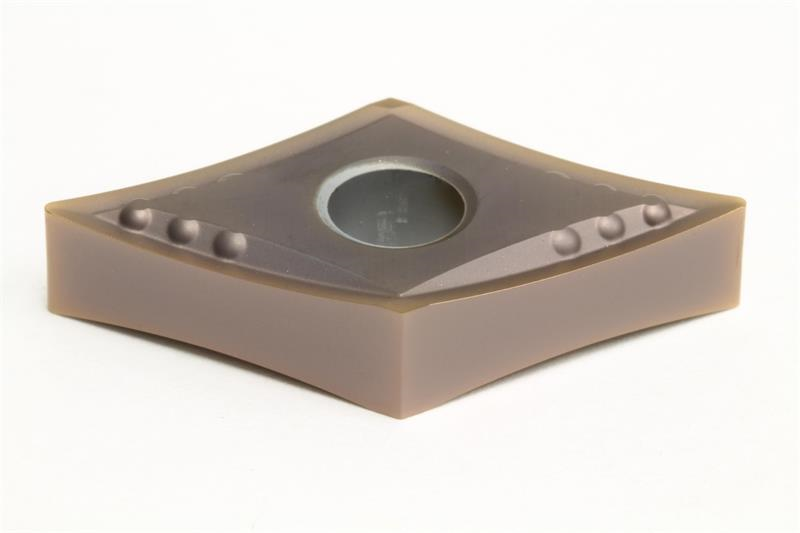

DNMG431 EUP AC520U Grade, Carbide, TiAIN/AICrN Coated, Turning Insert

  • Item Code: DNMG431EUP AC520U
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Product Name Turning Insert
Thickness 0.1875 Inch
Grade AC520U
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
Number of Edges 4
Included Angle 55
Insert Type Negative
Material Solid Carbide
Inscribed Circle 0.5000 Inch
Shape Diamond
Corner Radius 0.0156 Inch
Insert Size 431
Insert Style DNMG
Rake Angle 10 Degree
Brand Sumitomo
Chipbreaker Type EUP
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish PVD
