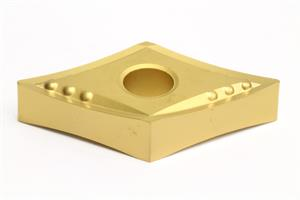

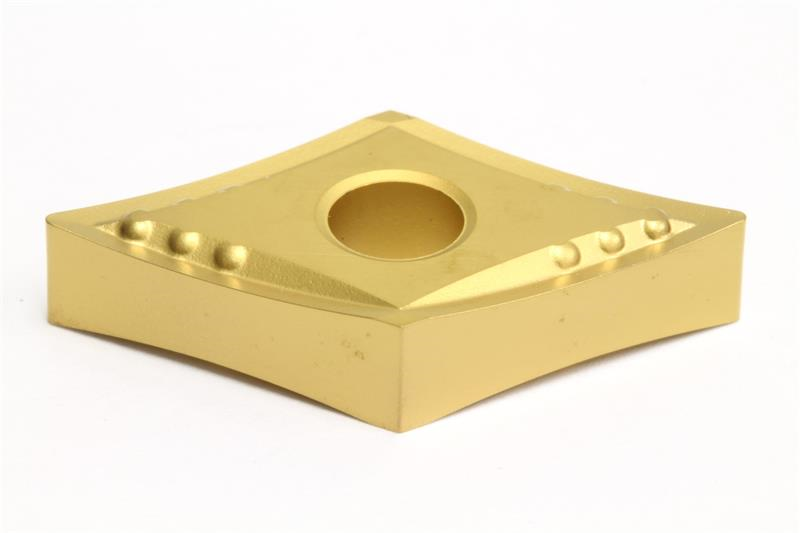

DNMG431 EUP AC830P Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG431EUP AC830P
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Inscribed Circle 0.5000 Inch
Grade AC830P
Number of Edges 4
Product Name Turning Insert
Thickness 0.1875 Inch
Shape Diamond
Material Solid Carbide
Insert Style DNMG
Brand Sumitomo
Chipbreaker Type EUP
Corner Radius 0.0156 Inch
Included Angle 55
Insert Size 431
Rake Angle 10 Degree
Insert Type Negative
Mounting Hole Diameter 0.2031 Inch
Relief Angle 0 Degree
