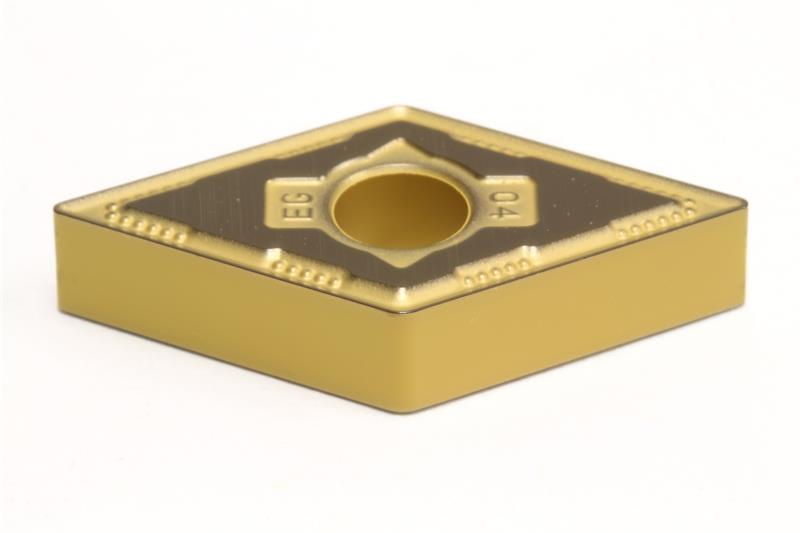

DNMG432 EEG AC630M Grade, Carbide, AI2O3 Coated, Turning Insert

  • Item Code: DNMG432EEG AC630M
  • Brand: Sumitomo
  • Unit Size: 1

Description

Features Tech Specs

Features

Back To Top
    • Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.

Tech Specs

Back To Top
Included Angle 55
Material Solid Carbide
Brand Sumitomo
Insert Size 432
Mounting Hole Diameter 0.2031 Inch
Product Name Turning Insert
Insert Style DNMG
Insert Type Negative
Rake Angle 0 Degree
Relief Angle 0 Degree
Applicable Materials Steel, Stainless Steel, Cast Iron, Non-Ferrous, Exotic Materials, Hardened Steel
Coating/Finish CVD
Grade AC630M
Chipbreaker Type EEG
Inscribed Circle 0.5000 Inch
Thickness 0.1875 Inch
Corner Radius 0.0313 Inch
Number of Edges 4
Shape Diamond
